Deploying the MSDTC in a Highly Secure Environment


This is just a fancy way of saying you need to be better friends with who ever is managing your enterprise firewall. I hadn’t had to touch the DTC until a recent vendor insisted their application wouldn’t work without it (despite their only having a single data store). The MSDTC was developed to coordinate transactions that would span multiple machines and was originally introduced in SQL Server 2000.

In theory it’s not super complicated: just enable the DTC service/communication on the servers in question and turn on some built in firewall rules on the servers right? Almost.

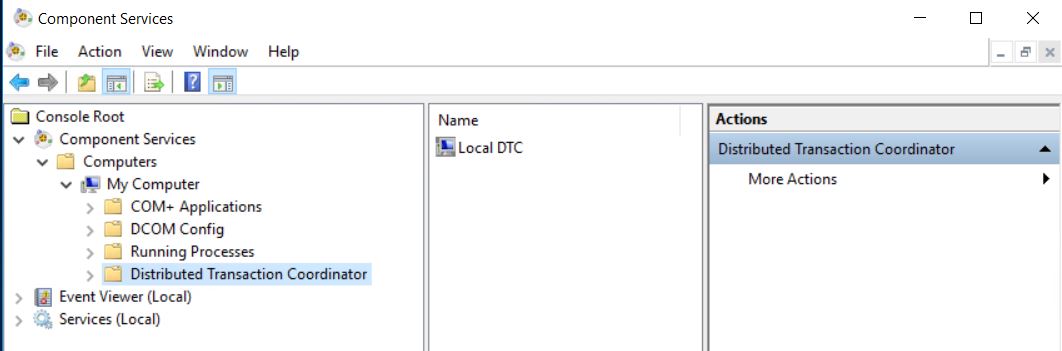

First you need to enable the DTC service. This is located in the Component Services manager: Screen shot of the Component Services Manager expanded out to show the Local DTC service. The console root expanded to show the Component Services which is expanded to show Computers which is expanded to show My Computer which underneath which Distributed Transaction Coordinator is selected.

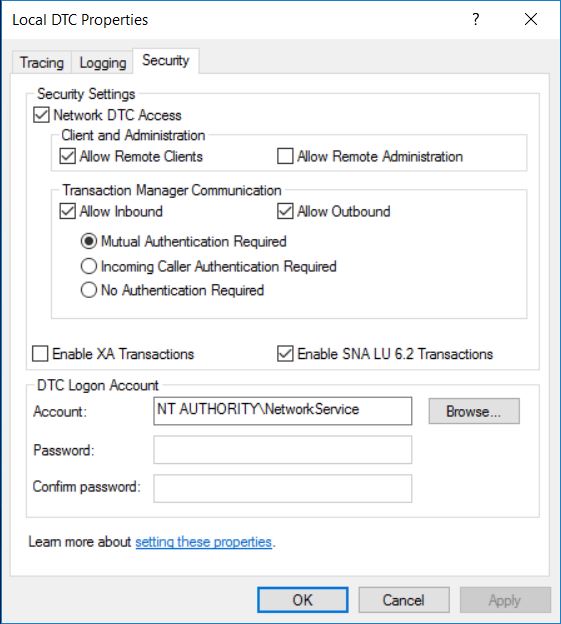

Right click and open the Local DTC properties and select the Security tab: Screenshot of the security properties tab for the Local DTC service. The various options are checked as described in the next paragraph.

We want to check the option Allow Network DTC Access as well as Allow Remote Clients. Under the Transaction Manager Communication the best practice would be to Require Mutual Authentication as our machines should ideally be on the same domain and aware of each other. No Authentication Required is a hold over and should only be used if you meet certain sad conditions. Additionally you may want to use a service account to run the DTC. (In hindsight it may have made my enterprise firewall adventures less adventurous to have done this: it would have made creating the enterprise firewall rule much more simpler: just allow the service account to the do the things!)

Once that’s out of the way there are 3 inbound and 1 outbound Windows firewall rules that need to be enabled to allow DTC traffic. This can be done manually or with the following Powershell Command.

Enable-NetFirewallRule -DisplayGroup "Distributed Transaction Coordinator

You’ll also need to set up a couple more rules to allow RPC calls to make it through the Windows Firewall. This page will you walk you through those rules.

It’s likely that if you are in a highly secure environment you’ll need to ensure the DTC transactions run on predictable ports. This article walks you through the process of configuring the DTC service to run on a specific port range. You’ll need to ensure there are firewall rules in place (both local and at the enterprise level) to allow that traffic.

Once you think you have everything configured and your firewall rule request has been closed out by information security it’s time to test it to be sure everything is working. Thankfully it’s PowerShell to the rescue again. The WinRM tools provides a cmdlet for this (please note it must be run in a console running as admin):

Test-Dtc -LocalComputerName "$env:COMPUTERNAME" -RemoteComputerName "mytargetserver" -ResourceManagerPort -[portnumber] -Verbose

Important notes from working my way through this: WinRM service will be making http calls on port 5985. Similarly the diagnostic tool starts a resource manager that defaults to running on port 0 unless you pass it a different option, I found it easiest to assign it a port at the end of the dynamic range I’d assigned to the DTC. The machines also need to be able to ping one another.

This week was not the most fun but hopefully this save someone (or even future me) some time in the future.
